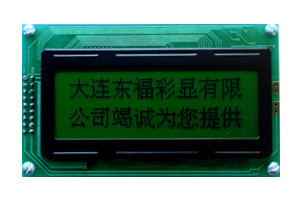

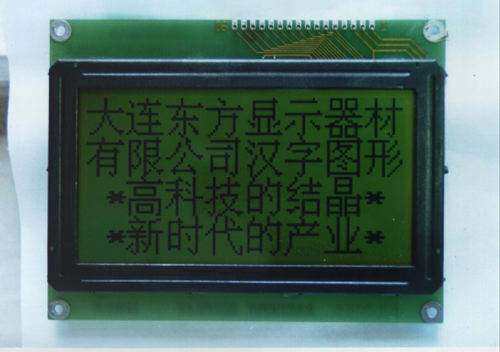

Graphic LCD Module                                                                                <SMT Packaging>                                                               Unit: mm Number of Dots Part No. Compatible  Part No. Outline Dimension  Viewing Area Dot Size Dot Pitch Controller Full Spec Photo 100x32 EDM10032A EDM10332-01 75.0x54.0x14.0 61.0x26.5 0.5x0.6 0.55x0.65 HC1620 EDM10032A 122x32 EDM12232A EDM12232-01 81.0x47.0x14.0 71.0x23.0 0.49x0.49 0.54x0.54 NJU6450 EDM12232A 122x32 EDM12232D EDM12232-18 88.3x51.0x13.0 71.0x23.0 0.49x0.49 0.54x0.54 HD61202 EDM12232D 128x16 EDM12816B EDM12816-02 85.75x40.0x14.0 62.8x14.0 0.42x0.42 0.47x0.47 S6B0108 EDM12816B 128x32 EDM12832A EDM12832-09 110.0x65.0x14.0 78.0x25.0 0.508x0.508 0.571x0.571 S6B0108 EDM12832A 128x32 EDM12832C EDM12832-05 96.0x58.0x14.0 75.0x27.0 0.45x0.45 0.50x0.50 HD61202 EDM12832C 128x64 EDM12864A EDM12864-20 110.2x84.8x14.0 92.8x48.9 0.635x0.635 0.685x0.685 HD61202 EDM12864A 128x64 EDM12864B EDM12864-21 93.0x70.0x14.0 72.0x40.0 0.48x0.48 0.52x0.52 HD61202 EDM12864B 128x64 EDM12864C EDM12864-22 102.0x70.0x14.0 72.0x40.0 0.48x0.48 0.52x0.52 HD61202 EDM12864C 128x64 DM12864-21 　 105.0x55.0x16.5 65.0x38.0 0.48x0.49 0.475x0.515 ST7565P DM12864-21 128x64 EDM12864-23 　 100.0x58.5x10.0 54.0x31.0 0.34x0.38 0.37x0.41 KS0713 EDM12864-23 128x64 EDM12864-27 EDM12864-GR 110.0x70.0x13.5 70.5x38.5 0.48x0.48 0.52x0.52 KS0713 EDM12864-GR 128x64 DM12864-27 　 93.0x70.0x7.5 71.7x39.0 0.48x0.48 0.52x0.52 KS0108 EDM12864-27 128x64 EDM12864-28 　 125.0x59.25x10.5 70.5x38.5 0.48x0.48 0.52x0.52 HD61202 EDM12864-28 128x64 EDM12864-29 　 125.0x59.25x10.5 70.5x38.5 0.48x0.48 0.52x0.52 HD61202 EDM12864-29 128x64 EDM12864F EDM12864-30 78.0x70.0x14.0 62.0x44.0 0.39x0.55 0.44x0.60 T6963C EDM12864F 128x64 EDM12864G EDM12864-32 93.0x70.0x14.0 70.8x39.0 0.48x0.48 0.52x0.52 HD61202 EDM12864G 128x64 EDM12864L EDM12864-33 93.0x70.0x14.0 70.8x39.0 0.48x0.48 0.52x0.52 HD61202 EDM12864L 128x64 EDM12864N EDM12864-36 78.0x70.0x14.0 62.0x44.0 0.39x0.55 0.44x0.60 HD61202 EDM12864N 128x64 EDM12864K EDM12864-38 93.0x70.0x14.0 72.0x40.0 0.48x0.48 0.52x0.52 HD61202 EDM12864K 128x64 EDM12864-42 EDM1710 82.0x77.0x12.5 62.0x44.0 0.39x0.55 0.44x0.60 HD61202 EDM1710 128x128 EDM128128-01 EDM1665 85.0x100.0x14.0 62.0x62.0 0.39x0.39 0.43x0.43 T6963C EDM128128-01 128x128 EDM128128-05 88.4x88.4x9.5 69.0x69.0 0.46x0.46 0.50x0.50 T6963C DFMG128128-04 128x128 EDM128128A EDM128128-06 99.0x100.0x14.0 69.0x69.0 0.46x0.46 0.50x0.50 KS0108 EDM128128A 160x32 EDM16032A EDM16032-01 122.0x46.5x14.0 99.0x24.0 0.53x0.53 0.58x0.58 T6963C EDM16032A 160x32 EDM16032B EDM16032-02 116.0x37.0x14.0 84.0x19.0 0.45x0.45 0.49x0.49 T9842 EDM16032B 160x96 EDM16096-01 　 88.3x72.2x15.0 68.9x44.0 0.34x0.34 0.38x0.38 T6963C EDM16096-01 160x160 EDM1628 EDM160160-05 78.0x88.0x12.0 62.0x62.0 0.34x0.34 0.38x0.38 SED1335 EDM1628 160x160 EDM160160A EDM160160-07 88.8x88.8x14.0 62.0x62.0 0.34x0.34 0.38x0.38 NONE EDM160160A 192x64 EDM19264-01 DFMG19264-01 120.0x62.0x14.5 100.0x37.0 0.46x0.46 0.50x0.50 KS0108 EDM19264-01 192x64 EDM19264-02 DFMG19264CD 100.0x60.0x15.0 84.0x31.0 0.38x0.38 0.42x0.42 KS0108 DFMG19264CD 192x64 DM19264-18 DM19264-18 125.91X61.54X2.2 121.91X54.54 0.458x0.458 0.508X0.508 KS0108 DM19264-18 240x64 EDM24064A EDM24064-01 180.0x65.0x14.0 132.0x39.0 0.49x0.49 0.53x0.53 T6963C EDM24064A 240x64 EDM24064-05 EDM24064-05 180.0x75.0x10.0 132.0x39.0 0.49x0.49 0.53x0.53 T6963C EDM24064-05   240x100 EDM240100-01 EDM240100-01 114.95x60.0x7.9 99.95x43.55 0.35x0.35 0.4x0.4 NONE EDM240100-01   240x128 EDM240128B EDM240128-02 144.0x104.0x14.0 114.0x64.0 0.4x0.4 0.45x0.45 HD61830 EDM240128B 240x128 EDM240128F EDM240128-06 144.0x104.0x15.0 114.0x64.0 0.4x0.4 0.45x0.45 T6963C EDM240128F 240x128 DFMG240128-03 　 144.0x104.0x15.0 114.0x64.0 0.4x0.4 0.45x0.45 T6963C DFMG240128-03 240x128 EDM240128D EDM240128-10 144.0x104.0x15.0 114.0x64.0 0.4x0.4 0.45x0.45 NONE EDM240128D   240x128 EDM240128-37 　 144.0x104.0x15.0 114.0x64.0 0.4x0.4 0.45x0.45 RA8822-S EDM240128-37 240x160 EDM240160-01 DFMG24064-01 69.2x50.0x8.0 61.7x42.5 0.22x0.22 0.24x0.24 NONE DFMG240160-01 256x64 EDM25664A EDM25664-03 Compatible with LM213XB 184.0x75.0x14.0 149.6x43.0 0.51x0.51 0.56x0.56 HD61830A EDM25664A 256x64 EDM25664-02 　 184.0x75.0x14.0 149.6x43.0 0.51x0.51 0.56x0.56 T6963C EDM25664-02 320x240 EDM320240A EDM320240-01 139.0x100.0x13.5 103.0x79.0 0.27x0.27 0.30x0.30 SED1351 EDM320240A 320x240 EDM320240B EDM320240-06 143.0x97.6x14.0 105.0x80.0 0.27x0.27 0.30x0.30 NONE EDM320240B 320x240 EDM320240-02 EDM320240-1 147.0x100.0x13.5 103.0x79.0 0.27x0.27 0.30x0.30 SDE1335 EDM320240-02 320x240 DFMG320240-05 139.0x100.0x12.0 103.0x79.0 0.27x0.27 0.30x0.30 SDE1335 DFMG320240-05 320x240 DFMG320240-08   103.0x80.8x14.0 81.05x61.6 0.22x0.22 0.24x0.24 SDE1335 EDM320240-08 320x240 EDM320240-23   160.0x109.0x12.5 122.0x92.0 0.30x0.30 0.33x0.33 SDE1335 EDM320240-23 640x200 EDM640200-01 EDM640200-01 270.0x142.0x13.5 231.0x105.0 0.32x0.46 0.35x0.49 NONE EDM640200-01 640x240 EDM640240-01   180.0x80.0x12.5 155.0x60.0 0.225x0.225 024x0.24 S1D13700  EDM640240-01                                                                                        <COB Packaging>                                                          Unit: mm Number of Dots Model No. Compatible  Part No. Outline Dimension  Viewing Area Dot Size Dot Pitch Controller Full Spec Photo 100x32 DFMG10032-01 EDM10032-01 75.0x54.0x14.0 61.0x26.5 0.5x0.6 0.55x0.65 HC1620 DFMG10032-01 122x32 DFMG12232-01 EDM12232-07 84.0x44.0x14.0 60.5x17.5 0.4x0.45 0.44x0.49 HC1620 DFMG12232-01 122x32 DFMG12232-05 EDM12232-10 81.0x47.0x14.0 71.0x23.0 0.49x0.49 0.54x0.54 NJU6450 DFMG12232-05 122x32 EDM12232-06 EDM1768 84.0x44.0x14.5 60.0x18.0 0.36x0.41 0.40x0.45 NJU6450 EDM12232-06 122x32 EDM12232-10 EDM12232A-YH 81.0x47.0x15.0 71.0x23.0 0.49x0.49 0.54x0.54 NJU6450 EDM12232A-YH 128x16 DFMG12816-01 EDM12816-01 85.75x40.0x14.0 62.8x14.0 0.42x0.42 0.47x0.47 S6B0108 DFMG12816-01 128x32 DFMG12832-01 EDM12832-01 96.0x58.0x14.0 75.0x27.0 0.45x0.45 0.5x0.5 S6B0108 DFMG12832-01 128x32 EDM12832-08 EDM12832-JDH 110.0x65.0x14.0 78.0x25.0 0.45x0.45 0.5x0.5 S6B0108 EDM12832-JDH 128x64 EDM12864-01 EDM12864P 93.0x70.0x14.0 70.5x38.5 0.48x0.48 0.52x0.52 S6B0108 EDM12864-01 128x64 DFMG12864-02 EDM12864-02 75.0x68.0x9.5 60.5x33.0 0.39x0.39 0.43x0.43 S6B0108 EDM12864-02 128x64 EDM12864-03 EDM12864-02CJ 75.0x68.0x9.5 60.5x33.0 0.39x0.39 0.43x0.43 S6B0108 EDM12864-03 128x64 DFMG12864-05 EDM12864-92 93.0x70.0x14.0 70.8x39.0 0.48x0.48 0.52x0.52 ST7920 DFMG12864-05 128x64 DFMG12864-07 EDM12864-ALC-G 93.0x70.0x14.0 70.8x39.0 0.48x0.48 0.52x0.52 S6B0108 DFMG12864-07 128x64 EDM12864-12 EDM12864-ALC 93.0x70.0x14.0 70.8x39.0 0.48x0.48 0.52x0.52 ST7920 EDM12864-12 128x64 EDM12864-18 　 88.0x76.0x15.0 62.0x44.0 0.39x0.55 0.44x0.6 ST7920 EDM12864-18 　 128x64 EDM12864-19 　 93.0x70.0x13.0 70.8x39.0 0.48x0.48 0.52x0.52 ST7920 EDM12864-19 128x64 EDM12864-26 EDM12864-SS 110.0x70.0x13.0 70.5x38.5 0.48x0.48 0.52x0.52 S6B0108 EDM12864-SS 128x64 EDM12864-36 EDM12864N 78.0x70.0x14.5 62.0x44.0 0.39x0.55 0.44x0.6 S6B0108 EDM12864-36 128x64 EDM12864-66 　 95.0x60.0x11.5 70.8x39.0 0.48x0.48 0.52x0.52 S6B0108 EDM12864-66 128x64 EDM12864-75 95.0x60.0x13.0 70.5x38.5 0.48x0.48 0.52x0.52 S6B0108 EDM12864-75 128x64 EDM12864-76 　 93.0x70.0x13.5 70.8x39.0 0.48x0.48 0.52x0.52 ST7920 EDM12864-76 128x64 EDM12864-86 　 93.0x70.0x13.0 70.8x39.0 0.48x0.48 0.52x0.52 ST7920 EDM12864-86 128x64 EDM12864-88 　 93.0x70.0x13.0 70.5x38.5 0.48x0.48 0.52x0.52 S6B0108 EDM12864-88 128x64 EDM12864-116 　 93.0x70.0x12.6 70.5x38.5 0.48x0.48 0.52x0.52 S6B0108 EDM12864-116 160x32 EDM16032-05 　 122.0x44.0x14.0 99.0x24.0 0.56x0.56 0.60x0.60 ST7920 EDM16032-05 160x80 EDM16080-01 　 125.0x73.0x11.0 89.0x47.5 0.48x0.48 0.52x0.52 EM83040 EDM16080-01 　 192x64 EDM19264-08 　 113.0x71.0x15.3 97.0x48.0 0.44x0.62 0.48x0.68 KS0108 EDM19264-08 　                                                                                        <TAB Packaging>                                                  Unit: mm Number of Dots Model No. Compatible  Part No. Outline Dimension Viewing Area Dot Size Dot Pitch Controller Full Spec Photo 128x33 EDM12833-01 EDM12833-01 69.6x25.1x5.5 54.6x18.1 0.35x0.39 0.38x0.42 HD66410 EDM12833-01 　 128x64 EDM12864T EDM12864-25 100.0x58.5.0x13.0 54.0x31.0 0.34x0.38 0.37x0.41 SSD1815T EDM12864T 160x160 EDM160160-01 　 69.0x69.5x7.0 60.1x60.0 0.33x0.33 0.35x0.35 SED1335 EDM160160-01 320x240 EDM320240C EDM320240-05 89.0x70.0x5.0 81.05x61.6 0.22x0.22 0.24x0.24 NONE EDM320240C 　 320x240 EDM320240-18 　 103.0x80.8.0x14.0 81.05x61.6 0.22x0.22 0.24x0.24 NONE EDM320240-18
