Character LCD Module
<SMT/COB Packaging> Unit: mm

Display format	Part No.	Compatible Part No.	Outline Dimension	Viewing Area	Character Size	Dot Size	Controller	Full Spec	Photo

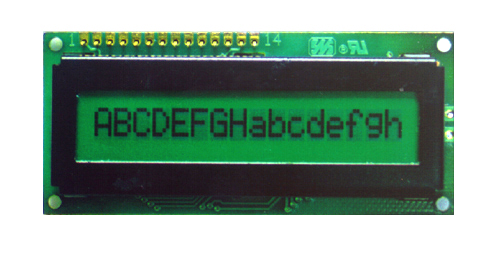

16x1	EDM1601A	EDM1601-01	80.0x36.0x13.5	65.6x13.8	3.15x6.3	0.55x0.7	S6A0069	EDM1601A
16x1	EDM1601B	EDM1601-02	80.0x36.0x13.5	65.6x13.8	3.15x6.3	0.55x0.7	S6A0069	EDM1601B
16x2	DM1602-01	DM1602-01	122.0x44.0x14.5	99.0x24.0	4.84x8.06	0.92x1.1	SPLC780	DM1602-01

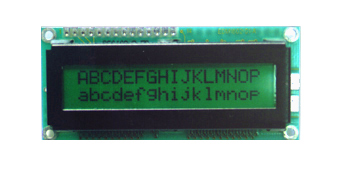

16x2	EDM1602A	EDM1602-01	80.0x36.0x13.5	65.6x13.8	2.92x4.72	0.52x0.52	S6A0069	EDM1602A

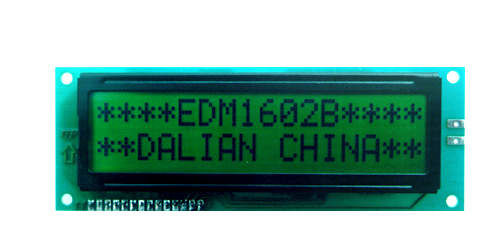

16x2	EDM1602-02	DM1602-01	122.0x44.0x14.5	99.0x24.0	4.84x8.06	0.92x1.1	S6A0069	EDM1602B
16x2	EDM1602-03	DFMC1602-03	84.0x44.0x13.5	64.5x13.5	5.55x2.95	0.55x0.65	S6A0069	EDM1602-03

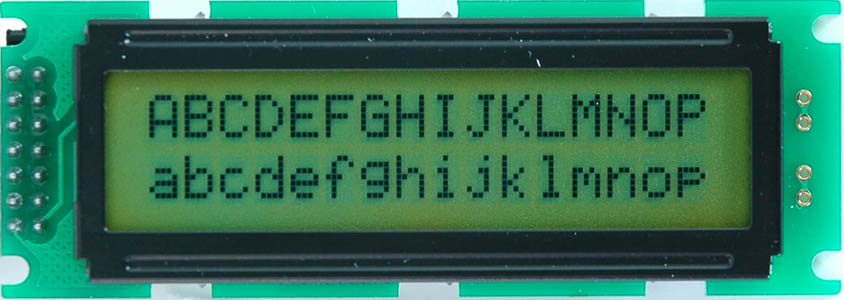

16x2	EDM1602-05	DFMC1602-05	85.0x29.5x14.0	62.5x15.4	5.55x2.95	0.55x0.65	S6A0070	EFMC1602-05
16x2	EDM1602-10	EDM1602D	85.0x30.0x14.5	64.5x17.0	4.75x2.95	0.55x0.55	S6A0069	EDM1602-10
16x2	EDM1602-21		122.0x44.0x14.0	99.0x24.0	8.05x4.83	0.91x1.09	S6A0070	EDM1602-21

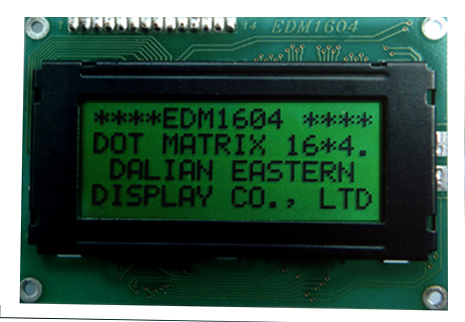

16x4	EDM1604A	EDM1604-01	87.0x60.0x13.5	61.8x25.2	2.933x4.733	0.533x0.533	S6A0074	EDM1604A

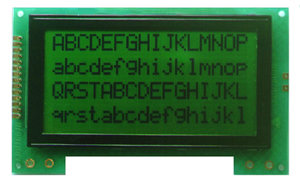

16x4	EDM1604B	EDM1604-02	115.0x70.0x13.5	88.0x44.2	4.45x8.95	0.85x0.95	S6A0074	EDM1604B

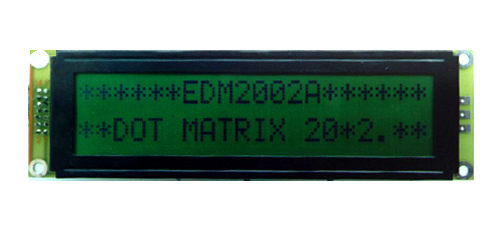

20x2	EDM2002A	EDM2002-01	163.0x48.0x13.5	129.0x30.0	5.08x9.625	0.914x1.092	S6A0069	EDM2002A

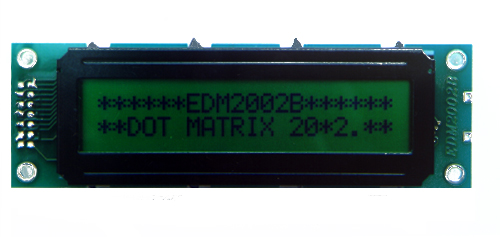

20x2	EDM2002B	EDM2002-02	116.0x37.0x13.5	83.0x18.6	3.2x5.55	0.6x0.65	S6A0069	EDM2002B

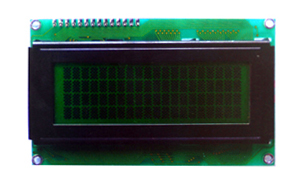

20x4	EDM2004A	EDM2004-01	98.0x60.0x13.5	78.0x25.0	2.95x4.75	0.55x0.55	S6A0075	EDM2004A
20x4	EDM2004-03	EDM2004-03	98.0x60.0x13.5	78.0x25.0	2.95x4.75	0.55x0.55	S6A0069	EDM2004-03
24x4	EDM2404A	EDM2404-01	120.0x58.0x13.5	91.15x29.85	2.95x5.55	0.55x0.65	KS0078	EDM2404A

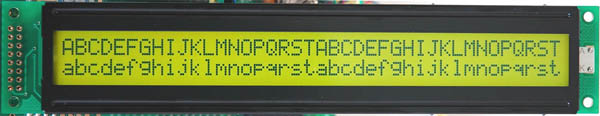

40x2	EDM4002-02	DFMC4002-02	182.0x40.0x10.0	153.5x23.5	3.15x5.75	0.55x0.55	S6A0069	EDM4002-02
40x2	EDM4002-01	DM4002-01	182.0x33.5x13.5	154.5x15.8	3.15x5.75	0.6x0.65	S6A0069	EDM4002-01

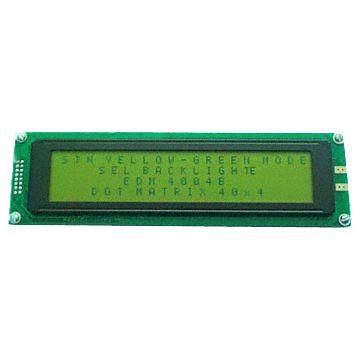

40x4	EDM4004-01	DM4004-01	190.0x54.0x13.5	147.0x29.5	2.78x4.89	0.5x0.55	S6A0069	EDM4004-01
